  • Product Model
    AK-DGL380
  • Rated Voltage
    DC12V
  • Operating Frequency
    433MHz/315MHz
  • Receiver sensitivity:
    -105dBm
  • Modulation method:
    ASK
  • Encoding format:
    EV1527
  • Working Mode
    Momentary/Toggle/Latched
  • Material:
    ABS
  • Operating temperature:
    -20~70℃
Various electric rolling doors, lifting equipment, gates, telescopic doors, lifters, LED lighting switches, motor forward/reverse control, home appliances, curtains, indoor & outdoor remote control systems, motorcycle alarms, etc.

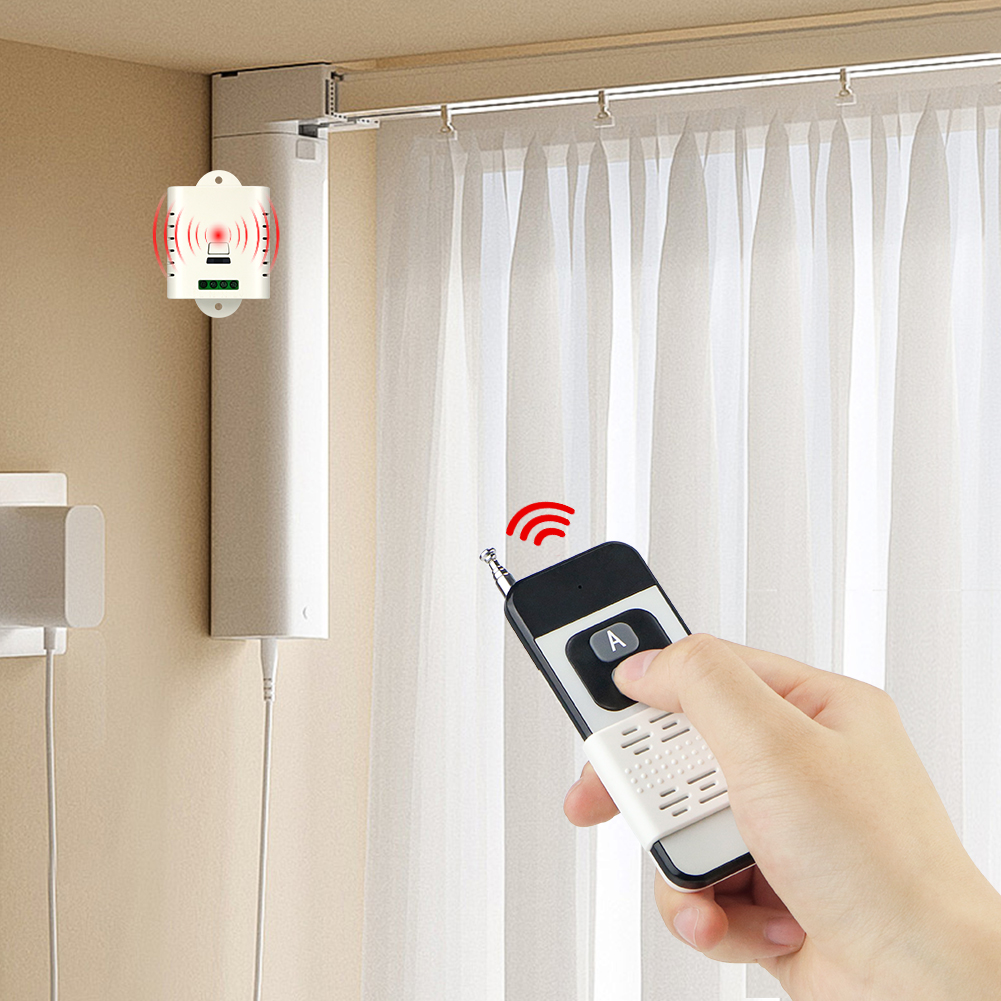

Applicable to conveyor belts, projection screens, rolling doors, electric curtains and doors, sliding doors, hoists, cranes, winches, door locks, gates, clothes racks, sunshades, rotating tables, smart electric furniture, parking locks, and lifting piles.

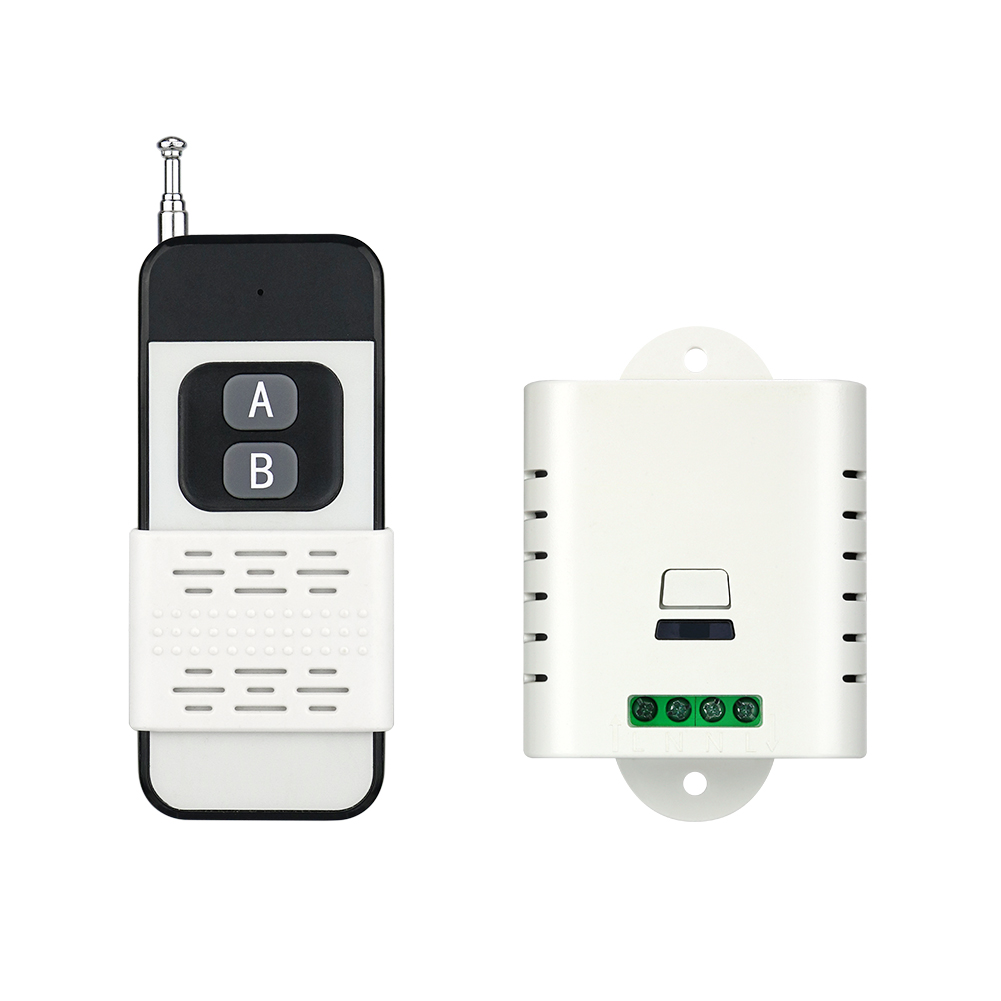

High 12V 1 Channel RF Wireless Receiver 433mhz Automatic Delay Lighting Garage Door Switch Remote Control

Price：
$ 1.91
Quantity： ꄷ ꄸ
낙Add to cart
끄Collect

High 12V 1 Channel RF Wireless Receiver 433mhz Automatic Delay Lighting Garage Door Switch Remote Control

ꄴPrevious： Mini Wireless 433mhz Learning Code Remote Control Garage Door Receiver LED Lighting Barriers Electric Gates Delay Mode Smart 12V
ꄲNext： Mini Wireless RF Remote Controller Set 433mhz Switch with Protective Cover Made Durable Metal for Electric Door Water Pump Crane



Pairing Method

Operation Method:

Learning Methods: (This controller can store 10 remote control codes)
Toggle: After connecting to the power supply, keep pressing the learning key on the controller for 3 seconds, the indicator light on, release the learning key, and then press the remote control button you want to learn twice , the controller indicator light flashes 3 times and goes out, indicating that the learning is successful.

Latched: After connecting to the power supply, keep pressing the learning key on the controller for 3 seconds, the indicator light on, release the learning key, press the remote control "A" button once, and then press the "B" button, the controller indicator light flashes 3 times and goes out, indicating that the learning is successful. (Button A and B are in latched mode)

Clearing Code:
Keep pressing the learning key for 15 seconds, the indicator light from on to off, indicating that the code is cleared successfully.
